433MHz Universal Wireless Remote Control AC 110V 220V 10Amp 2200W 4CH Relay Receiver

    433MHz Universal Wireless Remote Control AC 110V 220V 10Amp 2200W 4CH Relay Receiver Specification & Description Summary

    433MHz Universal Wireless Remote Control AC 110V 220V 10Amp 2200W 4CH Relay Receiver Specification

    • Brand NameDiese
    • UseUniversal
    • UseLighting
    • UseElectric Door



    HTB19jMYXcrrK1Rjy1zeq6xalFXaB

    HTB1BN38XinrK1RjSsziq6xptpXaT        HTB1hb0bg7voK1RjSZFNq6AxMVXap       HTB1GNI8XizxK1RjSspjq6AS.pXaE

    HTB12Vw8XfvsK1RjSspdq6AZepXad

    HTB1K3xLgVzqK1RjSZFoq6zfcXXacHTB1CQw_XjDuK1RjSszdq6xGLpXaNHTB1NBI9XcfrK1Rjy0Fmq6xhEXXarHTB17aQ_XcrrK1RjSspaq6AREXXaaHTB12TU9XizxK1Rjy1zkq6yHrVXah



    HTB1gTE9XijrK1RjSsplq6xHmVXas



    Product description



    433MHz Universal Wireless Remote Control AC 110V 220V 10Amp 2200W 4CH Relay Receiver Module RF Switch for Gate Garage opener



    *** Tips:If you need us to set up the operating mode , please leave a message on the order  ***



      Product Application Area

    Remote control garage door \  Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

    HTB1rmDIKeGSBuNjSspbq6AiipXaZ



      Package include

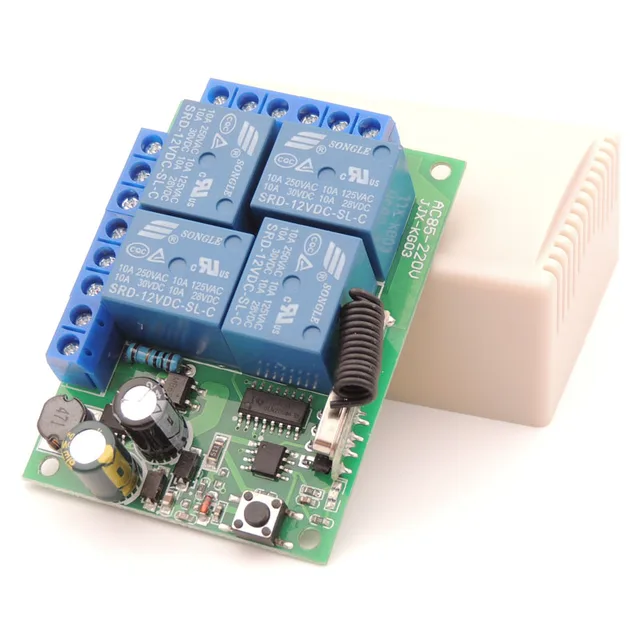

    Receiver module( include Shell )

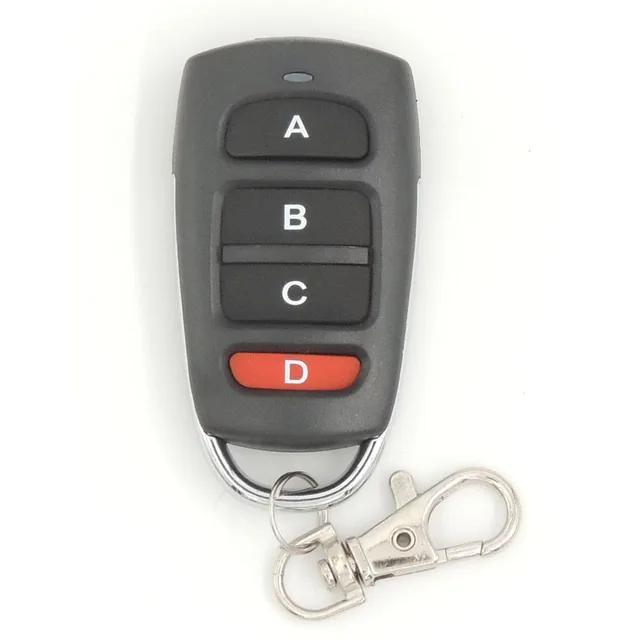

    Remote Control (include battery )
    Product manual




    1204-L
    KT05



      Technical Data

    Electronics Character:

    • Working Voltage:AC 85V~250V
    • Input Voltage:1V~250V
    • Output Voltage:1V~250V
    • Max current : 10Amp
    • max load: 2200W
    • Quiescent Current:5mA
    • Working Frequency:433Mhz
    • Receiving Sensitivity:-104dBm
    • Function option:Momentary/Toggle/Latched
    • Modulation Mode:ASK
    • Matching Mode: Intelligent Learning code
    • Output Mode:Dry contact /Voltage output
    • Shell:Yes
    • Working temperature : -30~+80
    • PCB dimension:68.2x48.2(mm)

    Pin functions:
    • +V :Positive pole input
    • GND :Negative pole input

    Relay 1/2/3/4

    • 1. Normal Closed of relay (NC)
    • 2. Common of relay          (COM)
    • 3. Normal Open of relay   (NO)

      Products Display
    HTB1jzhCp3ZC2uNjSZFnq6yxZpXaU


    Tips:
    All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.


    Click here to search more





      Circuit Connection modes


    Please Note:
    the Receiver Switch Module have 3 ways of working mode.The OUTPUT signal has 2 Voltage Level. It decided by the INPUT of the COM pin.



    33331

    NOTES

    1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity.
    2. Please promptly change battery when remote control voltage is insufficient,  (when the battery voltage is insufficient, generally get close transmitting )
    3. Please pay attention to avoid metal mask,large equipment ,strong interference electromagnetic filed when using wireless RF products,and avoid too short distance between the remote control and receiver board .
    4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe .



      Operating Mode

    You can match the Remote Control with the Receiver Switch Module  in 3 modes.

    • Remote mode 1:  Momentary Mode

    Press and hold on one button -> ON; Release the button -> OFF

    Details:
    Press one button (on the  remote control) , the relay (on the receiver board) turn to  switch-on
    Release the button, the relay turn to switch-off.



    • Remote mode 2:  Toggle Mode

    Press one button -> ON; Press the same button again -> OFF

    Details:
    Press one button (on the  remote control) once , the relay (on the receiver board) turn to  switch-on
    Press the same    button    again   , the relay turn to    switch-off.

    • Remote mode 3:  Latched Mode

    Press one button "A"-> ON; Press another button "B" -> OFF(another relay turn to switch-on)

    Details:
    Press one button "A"(on the  remote control) once , one relay (on the receiver board) turn to  switch-on
    Press another  button "B"  once  , the relay turn to  switch-off(At the same time another relay turn to switch-on )



      Set Up

    -  Part 1:  Delete the existing data about remote mode

     Note:   When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about    remote mode    for the first application.

    Press the learning button on the Receiver Switch Module board 8 times   , the existing data are deleted successfully.
    After deleted the data, all the remote control cannot work any more.





    07



      -  Part 2:  Set up the Remote Mode

    Remote mode 1: Momentary Mode

    • STEP 1
    Press and release the learning button on the Receiver Switch Module board once.
    Wait for a moment , the LED will turn off , indicating you entered the learning state.

    • STEP 2
    Press and release one button on the    Remote Control   , the LED on the receiver board will flash on then off indicating the button was learned.

    Wait 3 seconds, the LED will turn on again, indicating system is ready for use.




    Remote mode 2 :   Toggle Mode
    • STEP 1
    Press and release the learning button on the Receiver Switch Module board twice.
    Wait for a moment , the LED will turn off , indicating you entered the learning state.

    • STEP 2
    Press and release one button on the  Remote Control, the LED on the receiver board will flash on then turn off ,    indicating the button was learned.

    Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.



    Remote mode 3 : Latched Mode

    • STEP 1
    Press and release the learning button on the Receiver Switch Module board triple.
    Wait for a moment , the LED will turn off , indicating you entered the learning state.

    • STEP 2
    Press and release one button on the  Remote Control, the on-board LED indicator will flash 5 times to inform that the setting of latched mode successful .
    Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.



    On this products details page, there is a demonstration video available.


    *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
